PLOSSYS Mobile Client

Introduction

With the PLOSSYS Mobile Client, you can use your PLOSSYS Output Engine (formerly PLOSSYS 5) even more flexibly. The app allows you to start print jobs directly from your mobile device via PLOSSYS Output Engine and PLOSSYS Print Client. This enables you to design your mobile printing processes efficiently and securely. The focus is on seamless integration into your existing corporate infrastructure and meeting modern requirements for security and user-friendliness.

System Architecture

┌─────────────────┐
│  Mobile Client  │
│   (Flutter App) │
└────────┬────────┘
         │ HTTPS (OpenID Connect)
         ▼
┌─────────────────┐
│     Operator    │
│   (SEAL Server) │
└────────┬────────┘
         │ IPP
         ▼
┌─────────────────┐
│  Output Engine  │
└────────┬────────┘
         │ Print Jobs
         ▼
┌─────────────────┐
│     Printers    │
└─────────────────┘

Note: The Mobile Client communicates only with the Operator. There is no direct connection to the Output Engine.

Requirements

Note

The Mobile Client can connect to any SEAL Operator instance (version 1.6.0 or later) as long as the Operator is correctly configured with OpenID Connect and the user exists in the identity provider. No additional Operator-specific configuration is required for the Mobile Client.

Key features

  • Mobile printing: The app allows you to send print jobs directly from your mobile device to company printers. You can use files on your smartphone or share output data from other apps via PLOSSYS Mobile Client.

  • Pickup printing: Print jobs are stored and only released at the printer once the user has authenticated themselves. Pickup printing increases the security of confidential documents and helps to reduce unnecessary printing.

Application

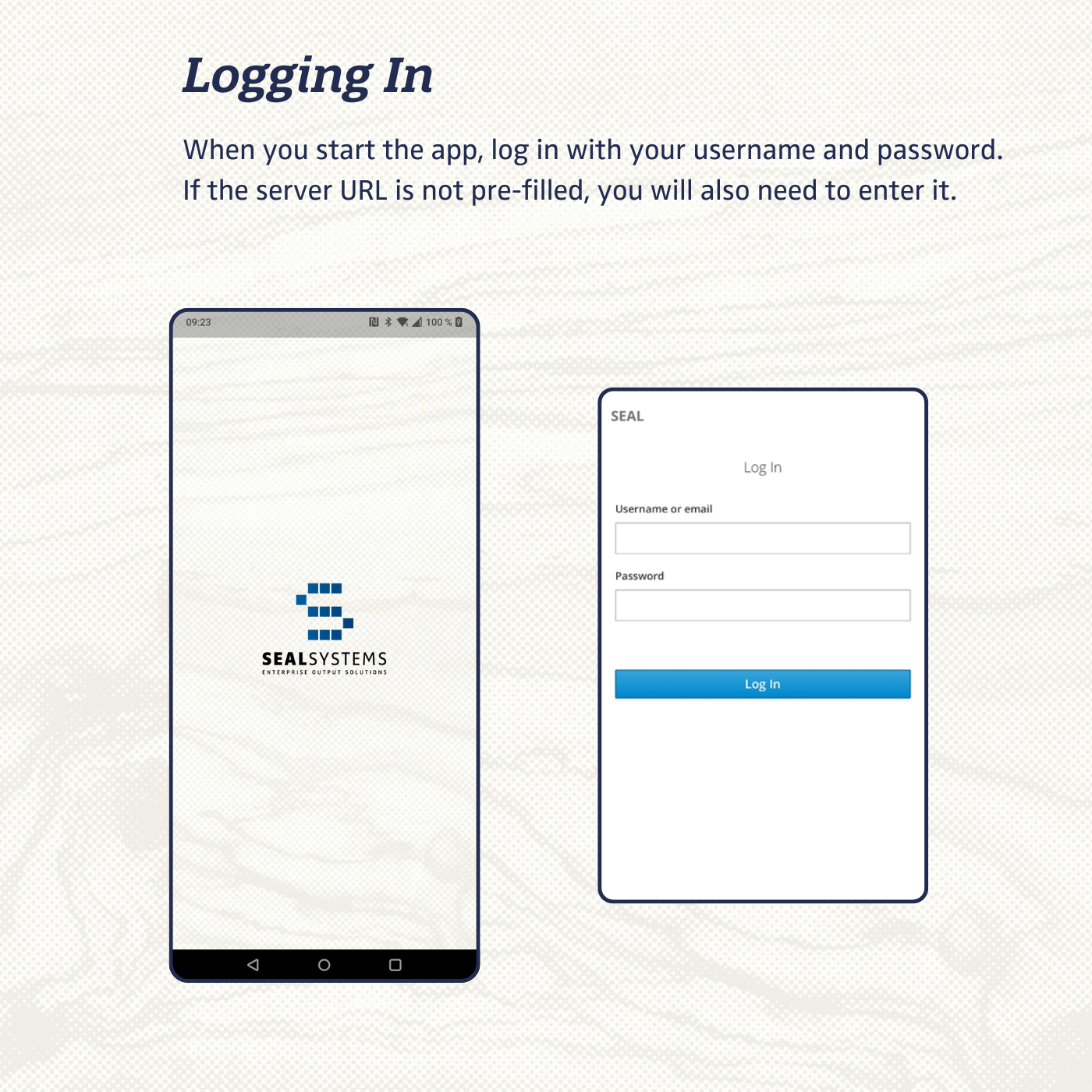

  1. When you start the app, log in with your username and password. If the server URL is not pre-filled, you will also need to enter it.

Logging in

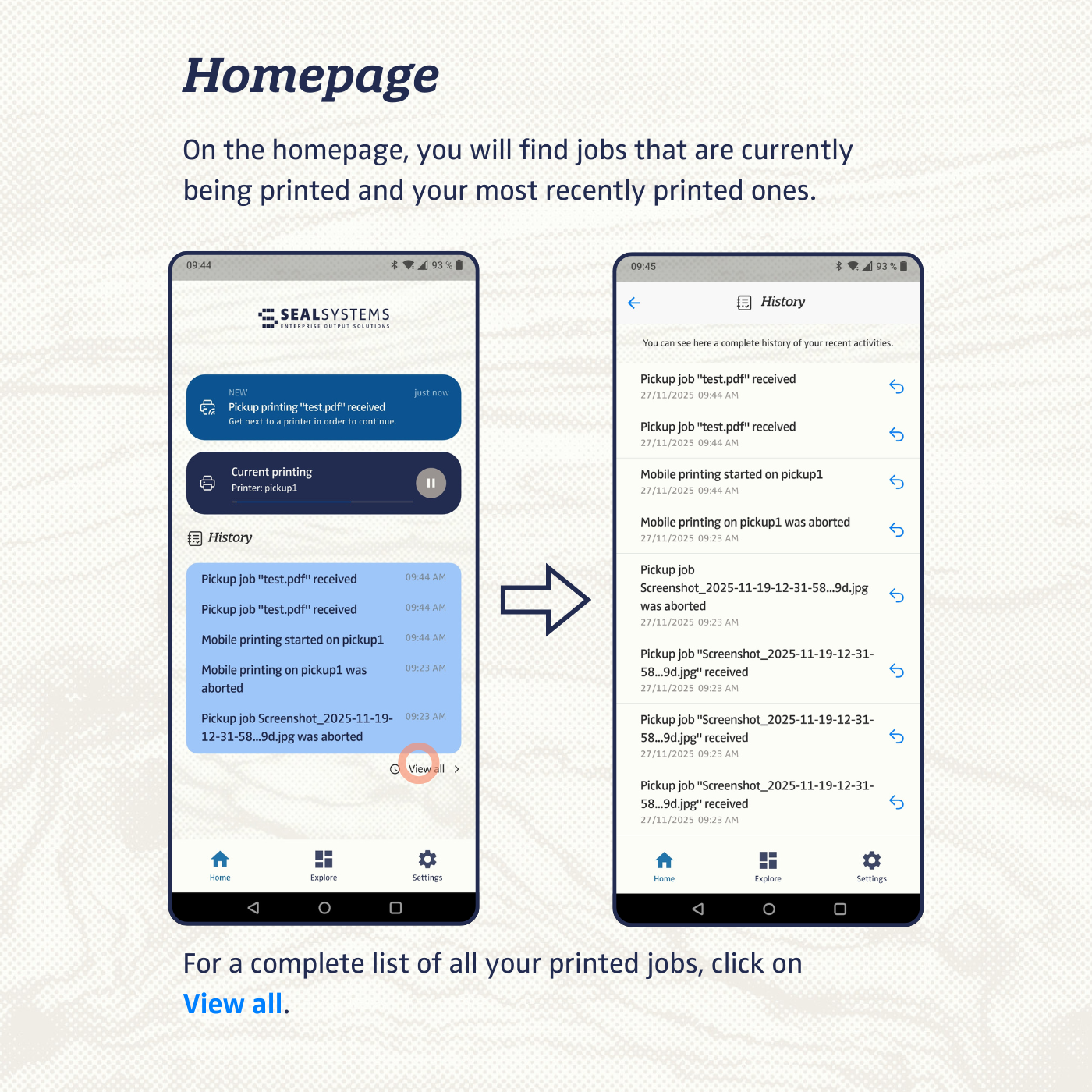

  1. On the homepage, you will find jobs that are currently being printed and your most recently printed ones. For a complete list of all your printed jobs, click on View all at the bottom right.

Homepage

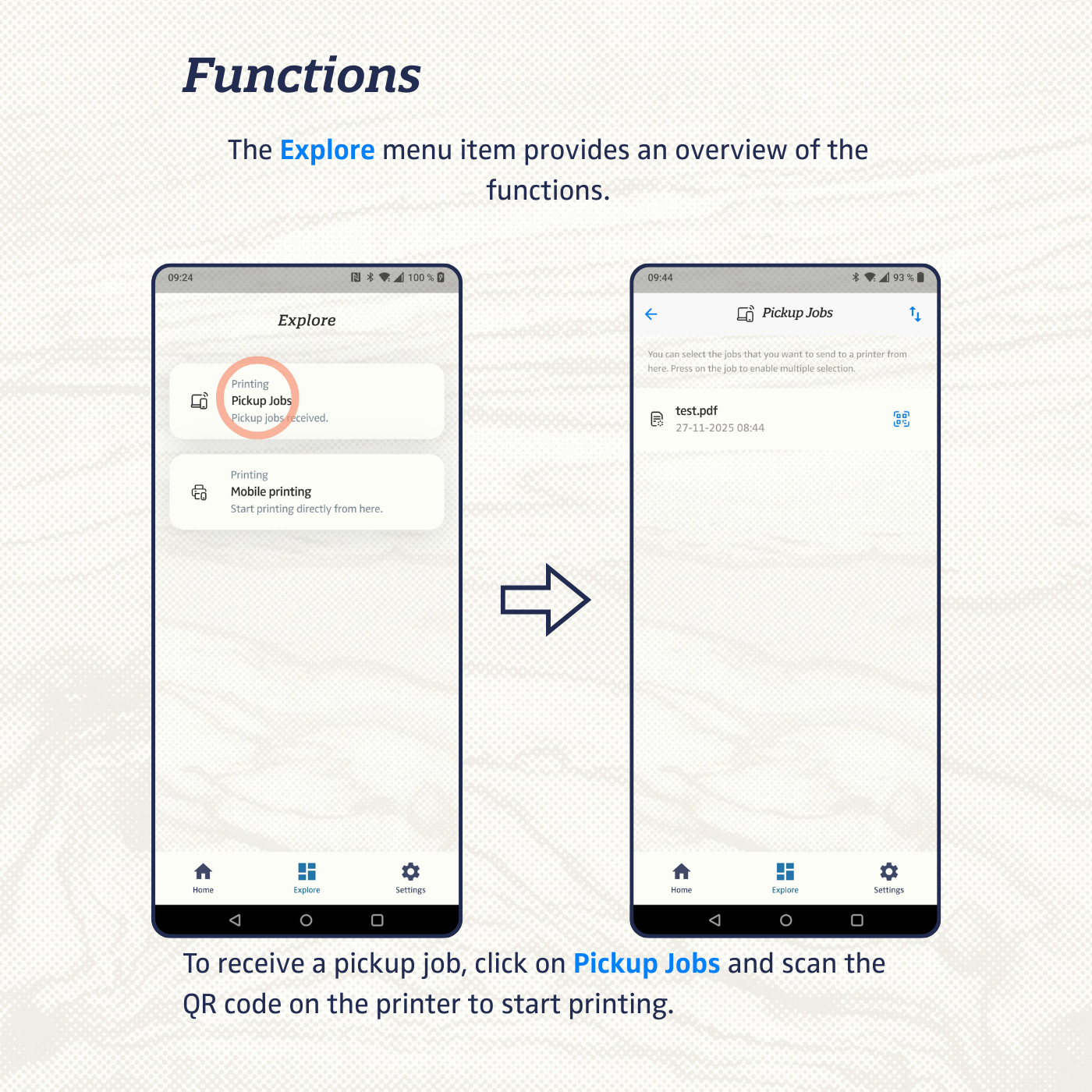

  1. The Explore menu item provides an overview of the functions. To receive a pickup job, click on Pickup Jobs and scan the QR code on the printer to start printi

The Explore menu item provides an overview of the functions.

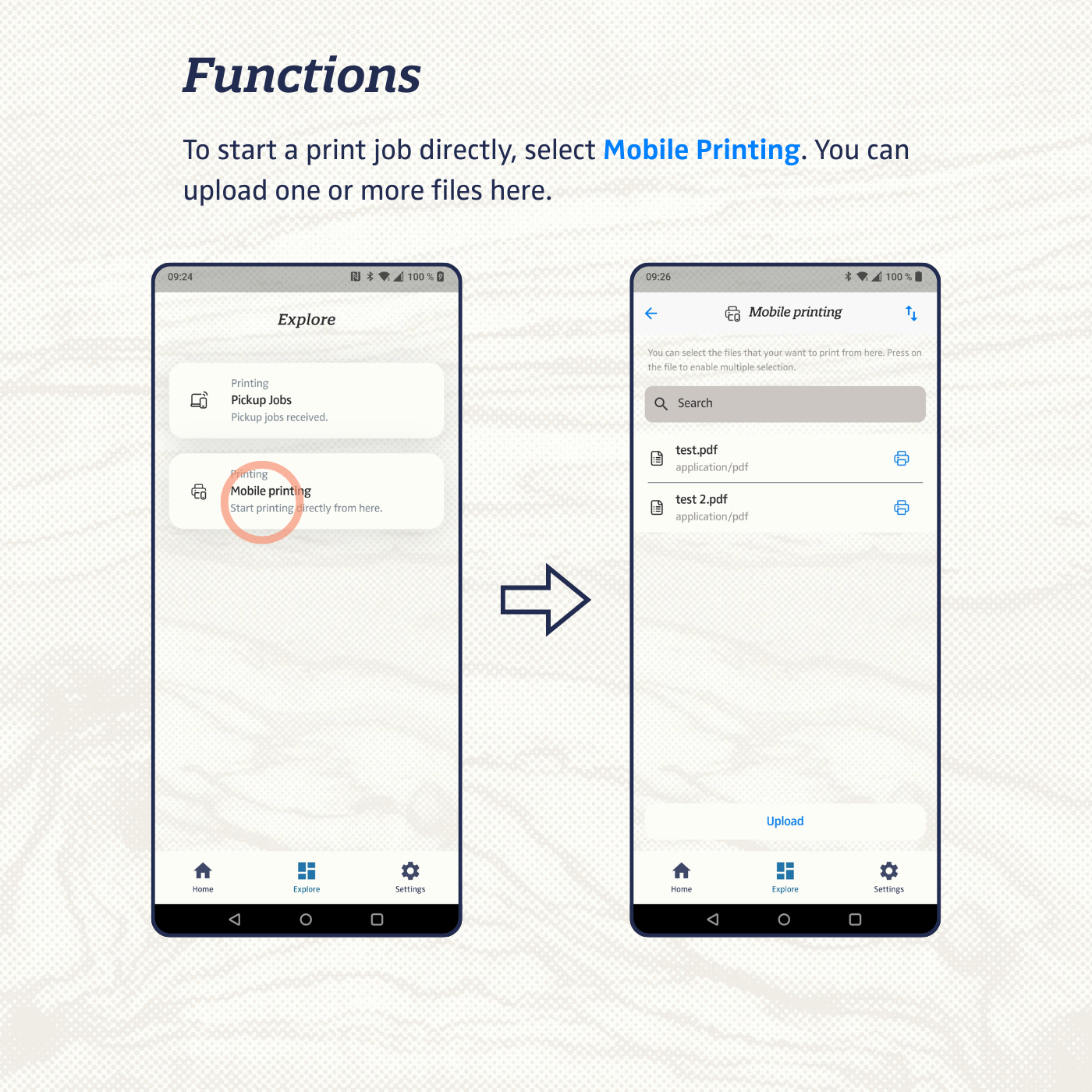

  1. To start a print job directly, select Mobile Printing. You can upload one or more files here.

Mobile Printing

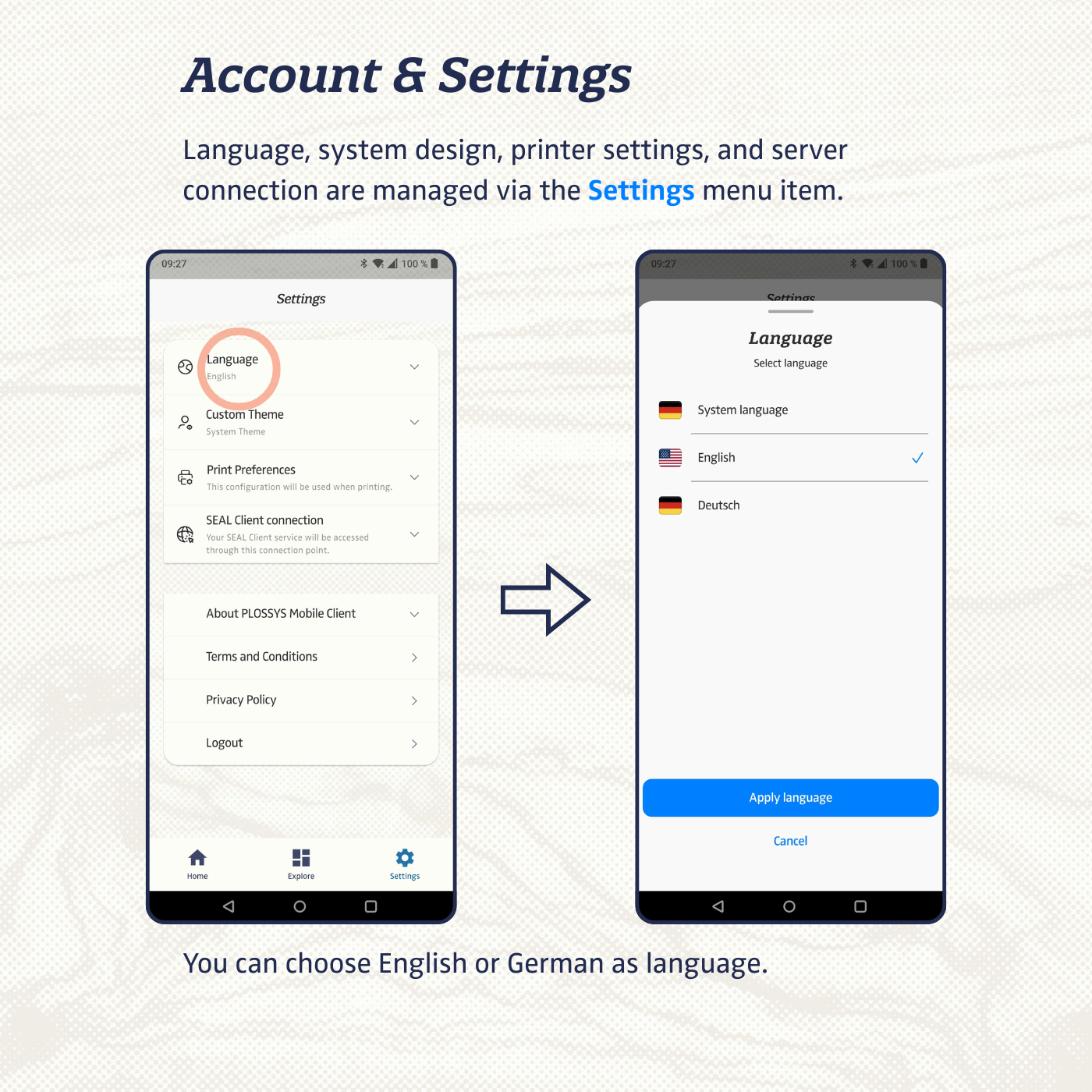

  1. Language, system design, printer settings, and server connection are managed via the Settings menu item. You can choose English or German as language.

Settings

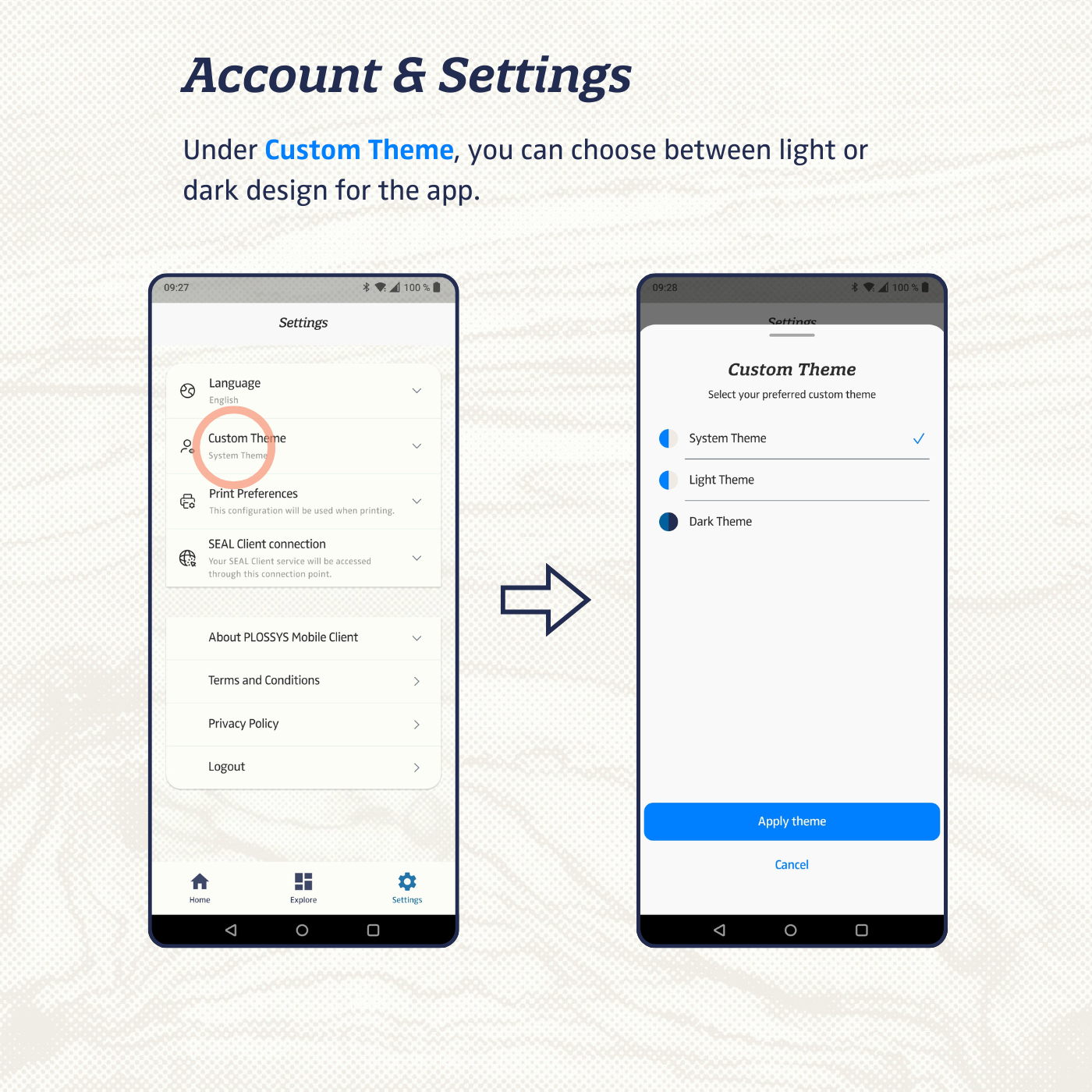

  1. Under Custom Theme, you can choose between light or dark design for the app.

Custom Theme

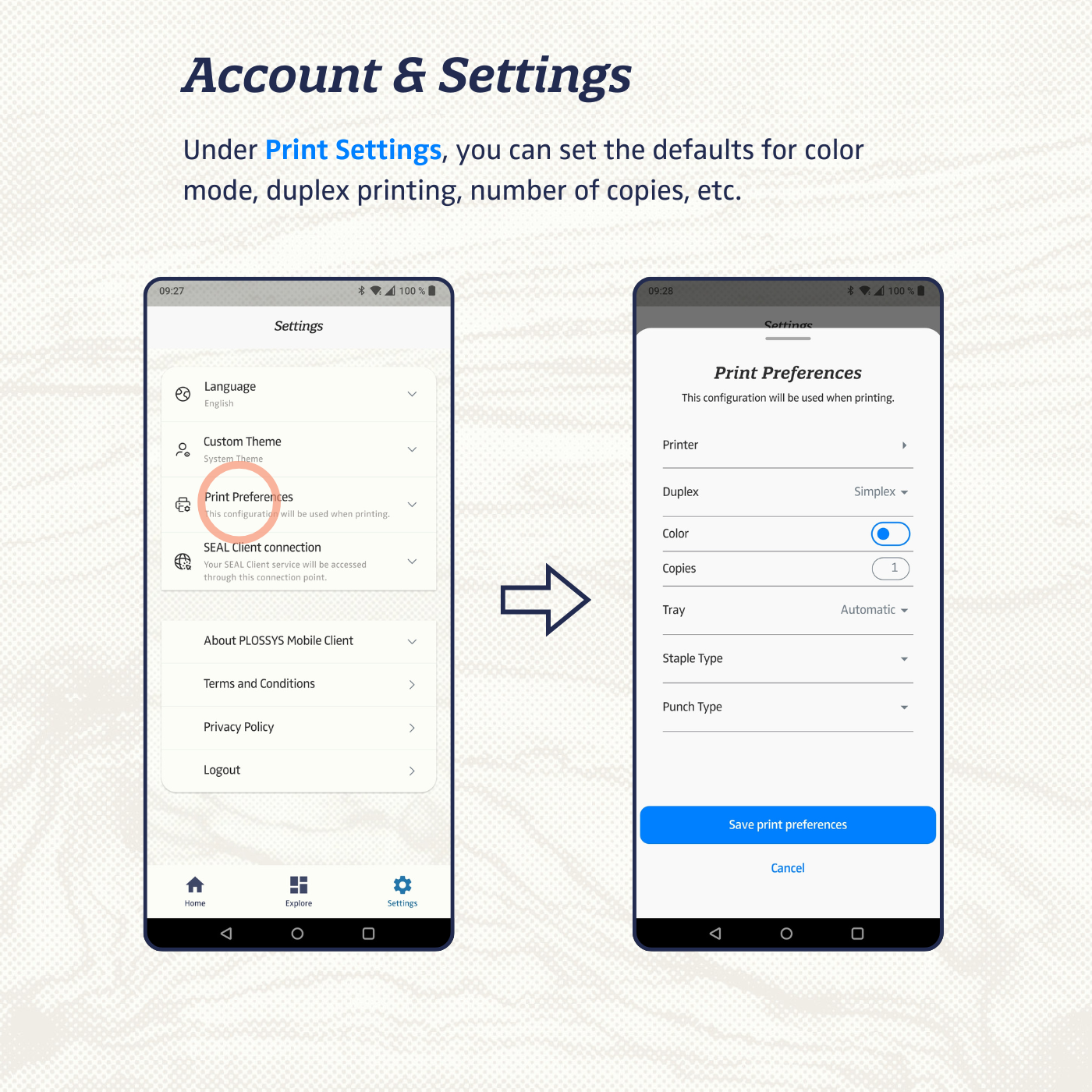

  1. Under Print Settings, you can set the defaults for color mode, duplex printing, number of copies, etc.

Print Settings

Configuration via MDM

Example (iOS)

To configure the app via MDM, provide the following keys in your Managed App Configuration (Apple Plist format):

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN"
  "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
  <dict>
    <key>sealClientUrl</key>
    <string>https://demo.operator.sealsystems.local/server-api/v1</string>

    <key>allowManualUrlConfigFallback</key>
    <string>false</string>
  </dict>
</plist>
Key Type Description
sealClientUrl String Base URL of the Operator server (must include /server-api/v1).
allowManualUrlConfigFallback Boolean (true/false) If true, the user can enter the Operator URL manually in the app. Set to false to enforce the MDM-provided URL.
authUrl String OIDC discovery/realm URL of the identity provider
clientId String OIDC client ID configured in the identity provider.

Note

If authUrl and clientId are not provided via MDM, the user must enter them manually in the app. The allowManualUrlConfigFallback key controls whether manual input is permitted at all.

Authentication (OpenID Connect)

The app uses the OAuth 2.0 Authorization Code Flow with PKCE (S256) as a public client.

Parameter Value
Protocol HTTPS
Auth Method OAuth 2.0 Authorization Code Flow with PKCE (S256)
Client type Public (no client secret)
Discovery URL {authUrl}/.well-known/openid-configuration
Client ID Configured via MDM or manually (e.g. seal-plossys-mobile-client)
Scopes openid, profile, email
Token storage flutter_secure_storage

The required runtime values are provided either via MDM or entered manually in the app:

  • sealClientUrl – Operator server base URL
  • authUrl – OIDC discovery/realm URL
  • clientId – OIDC client ID

Keycloak Client Configuration

This section describes how to set up the required Keycloak client for the PLOSSYS Mobile Client.

1. Create Client

In Keycloak, navigate to Clients → Create and set:

  • Client ID: e.g. seal-plossys-mobile-client
  • Client Type: OpenID Connect

2. Access Settings

  • Access Type: public
  • Standard Flow: ON
  • Implicit Flow: OFF
  • Direct Access Grants: OFF

3. PKCE

In the Advanced settings, set:

  • Proof Key for Code Exchange Method: S256

4. Redirect URIs

Add the following redirect URIs for all supported app variants:

Variant Redirect URI
Unlisted / Beta iOS de.sealsystems.plossysmobileclient://oauthredirect
Production iOS de.sealsystems.plossysmobileclient.public://oauthredirect
Staging / Beta Android de.sealsystems.sealprint.stg://oauthredirect

5. Client Scopes

If not already provided by realm defaults, configure the client scopes as follows:

Assigned Default Client Scopes:

  • email
  • profile
  • roles
  • web-origins

Assigned Optional Client Scopes:

  • address
  • offline_access
  • phone

6. Client Roles

In the client seal-plossys-mobile-client, navigate to Roles → Create and create the following role:

  • seal-print-client-user

Assign this role to all users or groups that should be allowed to use the Mobile Client.

!!! note: Without the seal-print-client-user role mapping, login can succeed at Keycloak but the Operator will return 403 Forbidden.

Operator Server Configuration

To allow the Mobile Client to access the Operator, add the client to ALLOWED_OIDC_CLIENTS in the Operator configuration:

{
  "seal-plossys-mobile-client": {
    "roles": {
      "seal-print-client-user": {}
    }
  }
}

The client ID used here must match the clientId value configured in MDM or entered manually in the app.

Base URL Configuration

  1. MDM (preferred) – Key: sealClientUrl, retrieved via platform channel
  2. Manual fallback – Enabled via allowManualUrlConfigFallback in MDM

The behavior depends on the allowManualUrlConfigFallback MDM key:

Value Behavior
true The user may override the MDM-provided URL with a manually entered one.
false The MDM-provided URL is enforced. Manual input is not permitted. If the managed URL is invalid, the app shows an error screen and cannot proceed until a valid URL is pushed via MDM.

Manual Configuration

If no MDM configuration is present, or if allowManualUrlConfigFallback is set to true, the user can configure the connection manually in the app.

The following values must be entered manually:

  • Auth URL – OIDC discovery/realm URL of the identity provider
  • Client ID – OIDC client ID
  • Server URL – Operator base URL

The app validates each value before proceeding. If a value is invalid, an error is shown and the login is not opened.

Changes to Auth URL or Client ID in the app settings will log the user out and require a fresh login. A change to the Server URL alone does not trigger a logout, provided the new URL is reachable with the existing session.

API Endpoints

Service Discovery

GET /ui                          → Discover services (finds operator-p5)

Tasks (/services/operator-p5/tasks)

POST   /tasks                    → Create print task
GET    /tasks/{taskId}           → Get task status
POST   /tasks/{taskId}/action    → Start / pause / resume / abort
POST   /tasks/{taskId}/input     → Add file input
GET    /tasks?status={s}&embed=metadata

Pickup Jobs (/services/operator-p5/function/)

POST  getPickupJobs              → List pickup jobs
POST  moveJob                    → Move job to printer
POST  fetchJob                   → Get job details
POST  pauseJob / resumeJob / abortJob
POST  getOtpSeed                 → Get OTP seed

Printer & Config

POST  getCapabilities?params=Printer::{printerId}
GET   /services/operator-p5      → Service config schema
GET   /ui/{serviceId}            → Print config schema
POST  /function/{providedBy}     → Get printers / provided items

File Upload (/services/operator-fileupload/)

POST  /repo                      → Create file repository entry
PUT   /repo/{uuid}/content       → Upload file content

Communication & Error Handling

  • All traffic: HTTPS, Bearer token authentication
  • Token is refreshed automatically on expiry
HTTP Status Behavior
401 / 403 Automatic logout
500+ Error toast (rate-limited)
Network err Connection error message

Note

The Mobile Client relies on the mobile operating system for HTTPS certificate validation. If the Operator server uses a publicly trusted CA certificate (for example Let’s Encrypt), the Mobile Client works without any additional configuration. If a self-signed or privately issued certificate is used, the corresponding root certificate must be installed on the devices (typically via MDM or manual root certificate installation) so that the app can trust the Operator server.

Ports

Ports are part of the Operator URL – no separate config needed.

Setup Example URL Port
Standard HTTPS https://operator.example.com 443
Custom port https://operator.example.com:8443 8443
